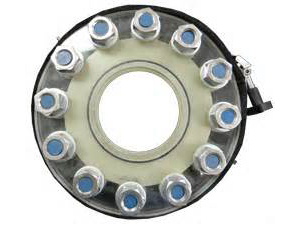

In industrial piping and flanged connection systems, controlling stray electrical currents and preventing galvanic corrosion is paramount for safety, system integrity, and longevity. This is where a specialized component comes into play: the Flange Insulation Gasket Kit. These kits are engineered assemblies designed to electrically isolate flanged joints while maintaining a leak-proof seal. They are indispensable in industries such as oil and gas, chemical processing, water treatment, and maritime, where pipelines are susceptible to cathodic protection interference, telluric currents, or galvanic corrosion between dissimilar metals.
A complete kit from a reputable manufacturer like Kaxite doesn't just include an insulating gasket. It is a comprehensive solution containing all necessary components to achieve full electrical isolation of the bolted flange connection. By installing these kits, operators protect expensive equipment like pumps, valves, and tanks, extend pipeline service life, and significantly reduce maintenance costs and unplanned downtime.

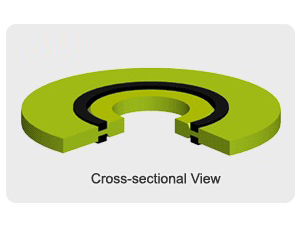

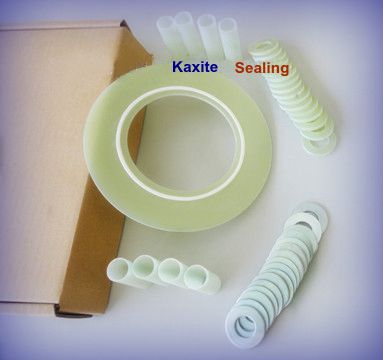

Understanding the anatomy of a kit is crucial for specifying the correct product. A standard Kaxite Flange Insulation Gasket Kit is meticulously designed to cover all electrical contact points.

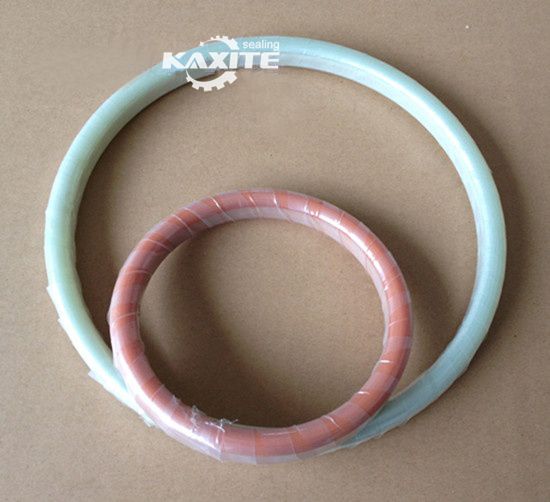

Kaxite offers a wide range of flange insulation gasket kits tailored to specific service conditions, pressures, temperatures, and media compatibility. Selecting the right material is critical for performance.
| Component | Primary Material Options | Key Properties & Typical Applications | Temperature Range | Pressure Rating (PSI) |
|---|---|---|---|---|
| Insulating Gasket | PTFE (Teflon®), Filled PTFE, G10/FR4 Epoxy Glass, PEEK, Elastomeric (with insulation) | PTFE: Excellent chemical resistance, non-stick. G10: High mechanical strength, rigid. PEEK: Exceptional thermal & chemical stability. Elastomeric: For lower-pressure sealing with isolation. | -100°F to 500°F+ (varies by material) | Up to 3000 PSI (Class 1500+) |
| Washers & Sleeves | PTFE, G10/FR4, POM (Acetal), Nylon, Phenolic | High dielectric strength, compressive strength, and creep resistance. Material is chosen to match or complement the gasket's capabilities. | Matching gasket range | N/A (Component of assembly) |
| Steel Washers | Carbon Steel (Zn plated), 304/316 Stainless Steel | Provides structural integrity to the bolted joint, prevents embedding of insulating washers. | N/A | N/A |
| Fasteners | Typically supplied by customer; kit is designed to fit standard bolt sizes. | Bolts, studs, and nuts (carbon or stainless steel) are not usually included but must be considered for length due to sleeve addition. | N/A | N/A |
Q: When is a flange insulation gasket kit required?
A: A kit is essential in several scenarios: 1) To isolate pipelines from grounded structures to ensure the effectiveness of an Impressed Current Cathodic Protection (ICCP) system. 2) To prevent galvanic corrosion at joints connecting dissimilar metals (e.g., carbon steel to stainless steel). 3) To block stray electrical currents from entering sensitive equipment. 4) In hazardous areas to prevent sparking at flanges. 5) In electrical isolation for corrosion monitoring purposes.
Q: Can I just use an insulating gasket without the washers and sleeves?
A: No, this is a common and critical mistake. The electrical current will simply find a parallel path through the bolts, rendering the gasket ineffective. Full isolation requires breaking all metallic conductive paths, which is why a complete kit with sleeves and washers is mandatory for proper protection.
Q: How do I select the right material for my application?
A: Material selection is based on the "WOG" criteria: What is the fluid (chemical compatibility)? Operating temperature and pressure? Gasket style and flange type? For aggressive chemicals, PTFE or PEEK are superior. For high mechanical load and temperature, G10 or PEEK are excellent. Consulting with an engineer or Kaxite's technical support team is highly recommended for critical service.
Q: How does bolt length change when using an insulation kit?
A: The total thickness of the insulating components (gasket + two washers + potential steel washers) adds to the "grip length" of the bolt. Standard bolts are often too short. You typically need longer bolts or studs. The required additional length is roughly: (Thickness of Insulating Gasket) + (2 x Thickness of Insulating Washer) + (2 x Thickness of Steel Washer, if used). Kaxite specifications always indicate the needed bolt length.
Q: What is the proper installation procedure for a Kaxite insulation kit?
A: Proper installation is key. 1) Ensure flange faces are clean, smooth, and undamaged. 2) De-magnetize flanges if necessary (for ferritic materials). 3) Slide an insulating sleeve onto each bolt/stud. 4) Insert bolts through one flange. 5) Place the insulating gasket centrally. 6) Mate the second flange. 6) On the nut side, stack components in this order (flange - sleeve - insulating washer - steel washer - nut). 7) Tighten bolts in a star-pattern sequence to the specified torque for even compression. Never lubricate insulating components.
Q: How can I test if my installed flange insulation is working?
A: A simple continuity test with a multimeter is the standard method. With the pipeline empty and safe, measure the electrical resistance across the isolated flange. A successful installation will show a very high resistance (typically in the megaohm range), indicating no electrical continuity. A low resistance reading indicates a short circuit, likely due to missing components, damaged insulation, or conductive debris.
Q: Are Kaxite kits suitable for high-temperature and fire-safe applications?
A: Yes. Kaxite manufactures specialized kits using materials like PEEK and certified graphite-based designs that meet fire-safe test requirements such as API 607/API 6FB or ISO 10497. For extreme temperatures, material selection and design are carefully engineered to maintain both sealing and insulating properties under the specified conditions.
Q: Do you offer custom kits for non-standard flanges?
A: Absolutely. Kaxite specializes in engineering solutions for unique challenges. We can produce kits for large diameters, unusual flange standards (DIN, JIS), lap joint flanges, jacketed piping, heat exchangers, and custom bolt patterns. Providing a detailed drawing or specifications allows our team to quote accurately.
Q: What are the consequences of not using an insulation kit where it is needed?
A: The consequences can be severe and costly: 1) Accelerated corrosion leading to pipeline leaks, spills, and environmental damage. 2) Failure of cathodic protection systems, leaving vast sections of pipeline unprotected. 3) Damage to sensitive equipment from electrical currents. 4) Increased maintenance, repair, and replacement costs. 5) Significant safety hazards due to potential leak failures in critical service.
