In the world of industrial sealing, few materials offer the unique combination of properties found in high-performance Graphite Packing. As a leader in advanced sealing technology, Kaxite has dedicated decades to refining and perfecting our graphite packing formulations to meet the extreme challenges of modern industry. Engineered for superior thermal stability, exceptional chemical resistance, and reliable self-lubrication, Kaxite Graphite Packing stands as the definitive choice for pumps, valves, agitators, and other critical equipment operating under severe conditions. This comprehensive guide delves into the specifications, benefits, and applications of our premium packing solutions.

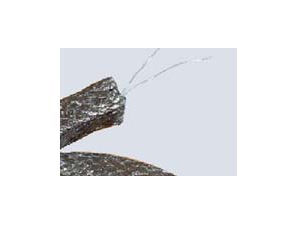

Kaxite's graphite packing is manufactured using pure, high-crystallinity graphite fibers and filaments, often reinforced with corrosion-resistant alloys like Inconel or Monel wire. This construction delivers unparalleled performance where other packings fail.
Kaxite Graphite Packing is available in multiple styles to suit specific application requirements. Below are the detailed technical specifications for our standard product lines.
| Parameter | Specification / Value |
|---|---|
| Material Composition | >98% Pure Exfoliated Graphite Filament, Reinforced with Inconel 600 Wire |
| Temperature Range | -200°C to 550°C (-328°F to 1022°F) in air |
| pH Range | 0 - 14 (All酸碱度) |
| Density | 1.5 - 1.7 g/cm³ |
| Tensile Strength | > 25 MPa |
| Thermal Conductivity | 50 - 120 W/m·K (depending on orientation) |
| Recommended Shaft Speed | Up to 25 m/s |
| Available Sizes (Square) | 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 19mm |
| Standard Length per Coil | 3.66 meters (12 feet) or custom lengths |
| Parameter | Specification / Value |
|---|---|
| Material Composition | Graphite Foil & Fibers, Interlayered with Monel 400 Wire Mesh |
| Temperature Range | -240°C to 650°C (-400°F to 1202°F) in non-oxidizing |
| Max. Pressure Rating | 350 bar (5075 psi) for rotary applications; 1000+ bar for valves |
| pH Range | 0 - 14 |
| Density | 1.8 - 2.1 g/cm³ |
| Primary Applications | High-pressure pumps, reactor agitators, hot oil services, steam valves |
| Parameter | Specification / Value |
|---|---|
| Material Composition | 100% Exfoliated Graphite Foil, Corrugated / Laminated |
| Form | Rings (Die-Formed), Sheets, or Tape on Roll |
| Temperature Range | -200°C to 3000°C (in inert gas/vacuum) |
| Compressibility | 40 - 60% |
| Recovery | 15 - 30% |
| Primary Applications | Flange gaskets, heat exchanger seals, expansion joints, furnace doors |
Q: How does Kaxite graphite packing compare to traditional asbestos or PTFE-based packings?
A: Kaxite graphite packing is vastly superior in high-temperature and chemically aggressive environments. Unlike asbestos, it is non-hazardous and offers better thermal stability. Compared to PTFE, graphite can withstand much higher temperatures (PTFE degrades above 260°C) and does not cold-flow under load. Graphite also provides inherent lubrication, which PTFE does not, leading to longer equipment life.
Q: Is graphite packing suitable for high-speed rotary equipment like centrifugal pumps?
A: Yes, absolutely. Kaxite's braided graphite packing styles (like KX-G1) are specifically engineered for high-speed rotary service. Their reinforced construction with alloy wire provides structural integrity, while the graphite's self-lubricating property minimizes heat generation and shaft wear. It is crucial to follow our installation guidelines for ring staggering and proper gland adjustment to achieve optimal performance and cooling.
Q: Can I use graphite packing on mixers or agitators with significant run-out or shaft deflection?
A: Graphite packing is an excellent choice for such challenging conditions. Its inherent flexibility and conformability allow it to seal effectively on shafts with minor run-out, deflection, or even scoring. The material will adjust to the dynamic movement, maintaining a consistent seal where more rigid packings might fail. For severe run-out, our corrugated foil style (KX-G3F) offers exceptional recovery and sealing capability.
Q: Does graphite packing require a break-in or run-in period? What is the proper gland adjustment procedure?
A: Yes, a proper run-in period is essential for long service life. After installation, hand-tighten the gland follower nuts evenly. Start the equipment and allow it to run for 10-15 minutes. Then, gradually tighten the gland in small increments (typically 1/6th of a turn per bolt) at 20-30 minute intervals until leakage is reduced to a slight drip or film for cooling/lubrication. Overtightening will cause excessive heat and premature failure. The packing should run cool to the touch.
Q: Is external flushing or cooling required for graphite packing applications?
A: In most standard applications with compatible fluids, external flushing is not required because graphite is self-lubricating. However, for services with abrasive slurries, crystallizing fluids, or absolutely zero-leakage requirements, a clean external flush (lantern ring arrangement) is highly recommended. This protects the packing set and extends its life. Kaxite can provide specific recommendations based on your service conditions.
Q: How do I select the correct size and style of Kaxite graphite packing for my application?
A> Selection depends on several factors: equipment type (pump, valve, agitator), shaft/sleeve diameter, operating speed, pressure, temperature, and the chemical nature of the fluid. As a general rule, the packing cross-section should match the width and depth of the stuffing box. Our KX-G1 is the versatile general-purpose choice, KX-G2HP is for high pressure/load, and KX-G3F is for static or low-motion high-temperature seals. Contact Kaxite's technical support with your equipment and process details for a precise recommendation.
Q: What is the expected service life of Kaxite graphite packing?
A: Service life varies dramatically based on operating conditions—speed, pressure, temperature, fluid abrasiveness, and installation quality. Under ideal conditions with proper installation and adjustment, Kaxite graphite packing can last for several years in continuous operation. In severe services, lifetimes of 6-18 months are common, which still significantly outperforms many alternative materials. Regular monitoring of leakage and gland condition is advised.
