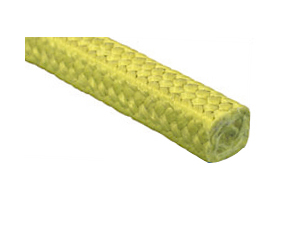

In the demanding world of industrial sealing, reliability and durability are non-negotiable. For applications involving high temperatures, aggressive media, and significant pressure, standard packing materials often fall short. This is where our high-performance Aramid Fiber Packing from Kaxite steps in as a superior solution. Engineered from synthetic aramid fibers, known for their exceptional strength-to-weight ratio and thermal stability, Kaxite's packing is designed to deliver unmatched sealing performance in the most challenging environments. Whether you're dealing with pumps, valves, agitators, or mixers, our product ensures extended service life, reduced maintenance downtime, and superior cost-effectiveness.
To assist engineers and procurement specialists in making an informed selection, below are the detailed technical specifications for Kaxite's standard Aramid Fiber Packing. Custom formulations are available upon request.
| Parameter | Specification / Value | Test Standard / Notes |
|---|---|---|
| Fiber Material | High-purity, continuous filament Aramid (Para-aramid) | Kaxite Premium Grade |
| Impregnation / Lubricant | PTFE dispersion & High-Purity Graphite | Proprietary blend for optimal performance |
| Temperature Range | -100°F to +550°F (-73°C to +288°C) | Continuous service; short-term peaks to 600°F (316°C) |
| pH Range | 2 - 13 | For most common chemical services |
| Density | 1.38 - 1.45 g/cm³ | ASTM D792 |
| Tensile Strength | > 3000 MPa (Fiber) | ASTM D885 |
| Pressure Rating | Up to 2500 psi (172 bar) | Dependent on size, braid style, and application |
| Thermal Conductivity | 0.04 - 0.05 W/m·K | Provides good thermal insulation |
| Coefficient of Friction | 0.15 - 0.25 (Dynamic) | Against polished stainless steel |
| Standard Braid Styles | Square Braid, Braid-over-Braid, Twisted/Platted | Available in spools, coils, or rings (die-formed) |
| Standard Sizes (Square Inch) | 1/4", 3/8", 1/2", 5/8", 3/4", 1", etc. | Metric sizes available |
| Color | Golden Yellow / Brown (Standard) | May vary with lubricant type |
Kaxite Aramid Fiber Packing is versatile and trusted across numerous industries.
Q: What exactly is aramid fiber, and why is it used for packing?
A: Aramid fiber is a class of high-strength, synthetic polymers known for their exceptional thermal stability, chemical resistance, and tensile strength (famously used in bulletproof vests). These properties make it ideal for mechanical packing, where it must seal against high-pressure, high-temperature fluids while resisting wear, extrusion, and chemical attack far better than traditional materials like asbestos, cotton, or flax.
Q: How does Kaxite's Aramid Packing compare to graphite or PTFE-based packings?
A: Each material has its niche. Pure graphite packing excels in extreme temperatures (up to 1200°F+) but can be less robust in abrasive services. PTFE packings have superb chemical resistance but can cold flow under high pressure. Kaxite's Aramid Packing offers an optimal balance: high temperature capability (up to 550°F), excellent chemical and abrasion resistance, and superior strength. It's often the best all-rounder for demanding, mixed-service applications.
Q: What is the correct installation procedure for this packing?
A: Proper installation is critical. Clean the shaft/sleeve and stuffing box thoroughly. Cut rings on a clean, sharp mandrel at a 90-degree angle, staggering joints by 90 degrees around the shaft. Install rings one at a time, seating each firmly with a split bushing. Tighten the gland finger-tight only for initial startup. After running for 30 minutes, retighten the gland slightly to allow for initial compression and thermal expansion. The goal is a slight leakage for lubrication and cooling during run-in. Never overtighten, as this causes excessive heat and wear.
Q: Can Kaxite Aramid Packing be used in potable water or food-grade applications?
A: Our standard grades with graphite lubricant are not recommended for direct contact with potable water or food products. However, Kaxite offers special formulations (like our KX-AF400 style) that are heavily impregnated with FDA-listed PTFE lubricants and use high-purity aramid fibers. These variants are designed specifically for sanitary, food, beverage, and pharmaceutical applications where non-contamination is essential. Please contact our technical team for the appropriate grade.
Q: How do I select the right braid style (Square, Braid-over-Braid, Twisted)?
A: Selection depends on application parameters. Square Braid is the most common, offering a good balance of density, flexibility, and sealing for general pump and valve service. Braid-over-Braid is denser, more resilient, and better for high-pressure, high-speed rotary equipment as it resists extrusion more effectively. Twisted or Plaited styles are softer, more economical, and easier to install on large, slow-reciprocating or rotary equipment like large valves or mixers where extreme pressure isn't a factor.
Q: What are the signs that my aramid packing needs replacement?
A: Common indicators include a significant increase in leakage that cannot be controlled by normal gland adjustment, excessive heat generation at the stuffing box, visible fraying or extrusion of the packing material from the gland, or a noticeable increase in power consumption/drag on the equipment. Regular maintenance checks are recommended to monitor leakage rates and stuffing box temperature.
Q: Does Kaxite offer pre-formed spiral rings or die-formed rings?
A: Yes. While we supply packing in spools and coils for on-site cutting, Kaxite also provides precision die-formed rings in our most popular styles and sizes. Die-formed rings ensure perfect 90-degree cuts, consistent density, and exact sizing, which leads to faster, easier installation and optimal sealing performance from the start. This is highly recommended for critical applications or for maintenance teams seeking to minimize downtime.
For over two decades, Kaxite has been at the forefront of sealing technology. Our Aramid Fiber Packing is manufactured under strict quality control protocols, ensuring every batch delivers consistent, reliable performance. We support our products with in-depth technical expertise, helping you select the right packing for your specific operating conditions. Choose Kaxite for a sealing solution that enhances operational efficiency, safety, and profitability.
