For engineers and procurement specialists navigating the demanding world of industrial fluid sealing, specifying the right component is critical. Among the myriad of options, one material stands out for its exceptional balance of properties: PTFE Packing. For over two decades, Kaxite has been at the forefront of engineering and manufacturing high-performance sealing solutions, and our PTFE braided packing represents the pinnacle of reliability in challenging applications.
What is PTFE Packing?
PTFE (Polytetrafluoroethylene) packing is a type of mechanical seal used to prevent leakage of fluids (liquids or gases) around rotating or reciprocating shafts, valves, pumps, and other equipment. Its unique molecular structure grants it a set of properties unmatched by many other sealing materials. Unlike traditional packings, PTFE offers near-universal chemical compatibility, an exceptionally low coefficient of friction, and the ability to perform in extreme temperatures, making it an indispensable solution for modern industry.
Kaxite PTFE Packing: Engineered for Excellence
Kaxite's PTFE packings are not just commodity products; they are precision-engineered systems. We utilize high-purity, virgin PTFE resins and employ advanced braiding and filament-winding techniques to create packings with consistent density and superior structural integrity. Our product line is designed to meet the specific demands of various services, from aggressive chemicals to ultra-pure food and pharmaceutical processes.
Key Product Parameters and Specifications
Understanding the specifications is key to proper selection. Below are the core parameters that define Kaxite PTFE Packing performance.
Material Composition & Properties
- Base Material: 100% Virgin PTFE Filament or Fibre (no reprocessed fillers).
- Temperature Range: -268°C to +288°C (-450°F to +550°F). Intermittent peaks up to 315°C (600°F) are possible.
- pH Range: 0-14 (Resistant to virtually all acids, bases, and solvents).
- Thermal Conductivity: Low, providing excellent insulation properties.
- Coefficient of Friction: Extremely low (typically 0.05 – 0.10), reducing shaft wear and power consumption.
- Compressibility & Recovery: Excellent, ensuring a lasting seal under varying pressures.
Standard Product Range & Specifications Table
| Product Code | Style / Construction | Density (g/cm³) | Pressure (Max. PSI) | Speed (Max. FPM) | Primary Applications |
|---|---|---|---|---|---|

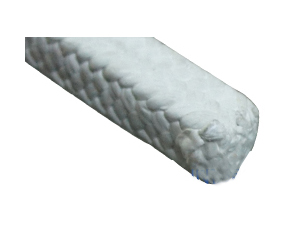

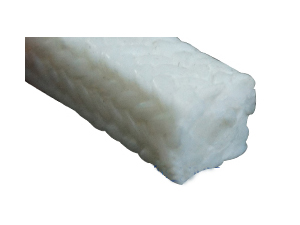

| KX-PTFE-FIL | Filament Braided, Lubricant Impregnated | 1.4 - 1.6 | 1,500 | 3,000 | General service pumps, valves, mixers. Excellent for dynamic sealing. |

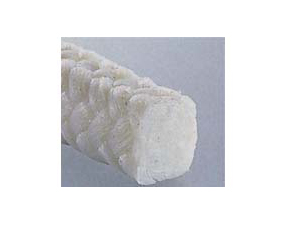

| KX-PTFE-FIB | Fibrillated Fiber Braided, Dry | 1.5 - 1.7 | 2,000 | 2,200 | Aggressive chemicals, high-load valve stems, and slow reciprocating equipment. |
| KX-PTFE-ENH | Filament Braided, Enhanced with Inert Fillers | 1.7 - 2.0 | 3,000+ | 2,500 | High-pressure pumps, hot water, and steam services. Improved abrasion resistance. |
| KX-PTFE-PUR | Ultra-Pure Filament, Specially Processed | 1.4 - 1.5 | 1,200 | 2,800 | Food, Beverage, Pharmaceutical (FDA, USDA, 3-A compliant), Semiconductor, and pure water systems. |

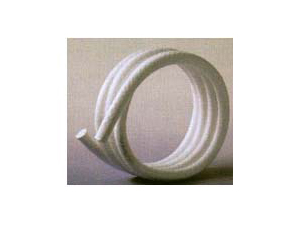

| KX-PTFE-EXP | Expanded PTFE Tape & Cord | 0.5 - 1.2 (adjustable) | Varies with compression | N/A (Static) | Flange gasketing, thread sealing, emergency repairs, and low-pressure valve packing. |
Available Sizes & Configurations
- Standard Square Cross-Sections: 3mm (1/8"), 5mm (3/16"), 6mm (1/4"), 10mm (3/8"), 13mm (1/2"), 16mm (5/8"), 19mm (3/4"), 25mm (1").
- Rectangular Cross-Sections: Available upon request for specific gland designs.
- Packaging: Supplied in spools, coils, or pre-cut rings. Custom die-formed rings are available for precision fitting.
- Colors: Standard is natural white. Other colors (e.g., green for oxygen service) can be specified for coding or safety.
PTFE Packing FAQ: Expert Answers from Kaxite
Selection & Application
Q: How do I choose between filament braided and fibrillated fiber PTFE packing?
A: The choice depends on application priorities. Filament braided packing (like KX-PTFE-FIL) is made from continuous, smooth filaments. It offers lower friction, runs cooler, and is ideal for higher shaft speeds and general service. Fibrillated fiber packing (like KX-PTFE-FIB) is made from cut sheets, creating a more fibrous structure. It has higher density, better extrusion resistance, and is often preferred for aggressive chemicals, high-pressure valves, and slower reciprocating motion where its conformability is an advantage.
Q: Can Kaxite PTFE packing be used in food-grade applications?
A: Absolutely. Our KX-PTFE-PUR series is specifically engineered for sanitary and ultra-pure applications. It is manufactured in a controlled environment using FDA-listed ingredients, complies with USDA and 3-A Sanitary Standards where applicable, and is free of contaminants. It is the ideal choice for pumps and valves in dairy, beverage, pharmaceutical, and biotech processing lines.
Q: What is the maximum pressure and temperature for PTFE packing?
A: While pure PTFE has broad limits, the practical operating range depends on the packing style and service. As shown in our specifications table, standard braided packings can handle continuous pressures up to 2,000-3,000 PSI and temperatures from -268°C to +288°C. For high-pressure/high-temperature services, our enhanced KX-PTFE-ENH series with specialized fillers is recommended. Always consult Kaxite engineering for specific extreme condition applications.
Installation & Maintenance
Q: Does PTFE packing require a break-in or run-in period?
A: Yes, a proper break-in procedure is crucial for optimal performance and longevity. PTFE packing has low thermal conductivity. After installation, gradually tighten the gland follower in small increments (e.g., 1/6 of a turn) while the equipment is running, allowing 10-15 minutes between adjustments. This allows heat to dissipate and the packing to seat properly without overheating or causing excessive shaft wear. The goal is to achieve a minimal, controlled leakage for lubrication and cooling during the break-in, which should subside to a drip or no leakage thereafter.
Q: Can PTFE packing be used on old or slightly worn equipment?
A: PTFE packing is an excellent choice for worn equipment due to its excellent conformability and low abrasiveness. It can often compensate for minor shaft scoring or wear. For severely worn shafts, we recommend using our denser KX-PTFE-FIB style or considering a combination set with a sacrificial outer ring. However, for best long-term results and to minimize leakage, repairing or replacing the worn shaft is always advised.
Q: Is external lubrication required for PTFE packing?
A: Generally, no. Most Kaxite PTFE filament packings are pre-impregnated with a PTFE-compatible lubricant that reduces initial friction. PTFE itself has a naturally low coefficient of friction. In very dry or abrasive services, a external drip lubrication system using clean water or a compatible fluid can further enhance packing life and performance, but it is not a strict requirement for most applications.
Performance & Advantages
Q: What are the main advantages of PTFE packing over traditional graphite or aramid packings?
A: PTFE packing from Kaxite offers several distinct advantages: Universal Chemical Resistance: It handles nearly all industrial chemicals, where graphite can be oxidized by strong oxidizers and aramids degrade in acids/bases. Non-Contaminating: It is clean, non-toxic, and will not pollute process streams. Low Friction: It reduces power consumption and shaft wear significantly compared to many traditional materials. Wide Temperature Range: It performs from cryogenic to high heat without the risk of oxidation that graphite faces. Ease of Use: It is clean to handle and does not pose the dust issues associated with graphite.
Q: How does the lifespan of PTFE packing compare to other types?
A: Service life is highly application-dependent. However, in comparable services—particularly those involving chemicals, high speed, or cleanliness requirements—Kaxite PTFE packing typically offers a significantly longer and more reliable service life than many traditional alternatives. Its corrosion resistance eliminates material degradation, and its low friction minimizes wear on both the packing and the shaft. Proper installation and maintenance are the final determinants of achieving maximum lifespan.
Q: Is PTFE packing suitable for mixers and agitators with significant run-out or imbalance?
A: PTFE packing is a robust choice for such challenging conditions. Its excellent compressibility and recovery allow it to absorb minor shaft movements and vibrations. For applications with substantial run-out, we often recommend our braided styles for their resilience. It is critical to ensure the packing box is in good condition and to follow a careful, gradual break-in procedure to allow the packing to adapt to the dynamic conditions without overheating.
Typical Industries & Applications for Kaxite PTFE Packing
- Chemical & Petrochemical: Sealing pumps and valves handling acids, caustics, solvents, and hydrocarbons. Resists sour gas (H2S) environments.
- Pharmaceutical & Biotechnology: Sterile and CIP/SIP processes, reactor vessels, and pure water transfer pumps.
- Food & Beverage: Centrifugal and positive displacement pumps for juices, dairy, sauces, and edible oils. Compliant with food safety standards.
- Power Generation: Boiler feed pumps, cooling water pumps, and valve stems in fossil and nuclear plants (where compatible).
- Pulp & Paper: Bleach plant equipment, chemical mixers, and stock pumps exposed to corrosive chlorides and peroxides.
- Water & Wastewater: Chemical dosing pumps, chlorine service, and general water pumping where non-contamination is key.
- General Manufacturing: A reliable seal for mixers, agitators, autoclaves, and hydraulic systems across various sectors.
Why Partner with Kaxite for Your PTFE Packing Needs?
Selecting Kaxite means more than just buying a product; it means gaining a partner with deep, application-specific expertise. Our 20-year legacy is built on:
- Material Purity & Consistency: We insist on virgin PTFE materials to guarantee batch-to-batch performance reliability.
- Advanced Manufacturing: Our state-of-the-art braiding technology ensures uniform density and structure, critical for leak-free sealing.
- Technical Support: Our engineering team provides expert selection guidance, installation recommendations, and troubleshooting support.
- Customization Capability: We can develop custom sizes, shapes, and formulations to solve unique or extreme sealing challenges.
- Global Supply Chain Reliability: We ensure timely delivery and consistent supply to keep your operations running smoothly.
