Synthetic Fiber Packing: A Comprehensive Guide for Industrial Sealing Solutions
In the demanding world of industrial fluid handling, selecting the right sealing material is critical for operational efficiency, safety, and cost-effectiveness. Among the myriad of options available, synthetic fiber packing stands out as a versatile and high-performance solution for a wide range of applications. At Kaxite, we specialize in engineering advanced synthetic fiber packings designed to meet the toughest sealing challenges. This guide delves deep into the specifics of synthetic fiber packing, its advantages, technical parameters, and best practices for selection and use.
**Understanding Synthetic Fiber Packing**
Synthetic fiber packing is a braided sealing material composed of high-performance synthetic fibers, often impregnated with lubricants and PTFE (Teflon) to enhance its sealing properties and reduce friction. Unlike traditional materials like flax or cotton, modern synthetic fibers offer superior resistance to heat, chemicals, and abrasion. They are engineered to create a reliable seal in pumps, valves, mixers, and other rotary or reciprocating equipment handling everything from water and steam to aggressive chemicals and fuels.
The primary function of any packing is to prevent or control leakage along a moving shaft (rotary) or rod (reciprocating). A proper seal minimizes product loss, prevents environmental contamination, and maintains system pressure. Kaxite synthetic packings achieve this through a controlled amount of leakage, which lubricates the packing set and carries away heat, ensuring a long and stable service life.
**Key Advantages of Kaxite Synthetic Fiber Packing**
* **Exceptional Chemical Resistance:** Formulated to withstand a broad spectrum of chemicals, including acids, alkalis, and solvents.
* **High Temperature Tolerance:** Capable of performing in continuous service temperatures significantly higher than organic fiber packings.
* **Low Friction & High Lubricity:** PTFE and graphite impregnations ensure smooth operation, reduce shaft wear, and lower driving torque.
* **Excellent Abrasion Resistance:** The toughness of synthetic fibers like aramid (Kevlar), carbon, and PTFE provides durability against abrasive media.
* **Non-Contaminating:** Ideal for applications in food, beverage, and pharmaceutical industries where purity is paramount, especially our PTFE-based packings.
* **Easy Installation & Adjustment:** The braided construction is flexible and conforms easily to the stuffing box, simplifying installation and maintenance.
**Technical Parameters and Product Specifications**
Selecting the correct packing requires a thorough understanding of its technical specifications. Below is a detailed breakdown of the key parameters for Kaxite synthetic fiber packings.
**Common Synthetic Fiber Types Used in Packing:**
1. **Aramid Fiber (e.g., Kevlar):** Renowned for its high tensile strength, excellent thermal stability, and good resistance to many chemicals. Ideal for high-pressure applications and abrasive media.
2. **Carbon Fiber:** Offers outstanding thermal conductivity, chemical inertness, and self-lubricating properties. Excellent for high-temperature and high-speed applications.
3. **PTFE Fiber (Teflon):** Provides the ultimate chemical resistance, very low friction, and a wide temperature range. Used in pure form or as a blend for highly corrosive services.
4. **Fiberglass:** Provides good thermal resistance and is often used as a cost-effective base for high-temperature graphite-impregnated packings.

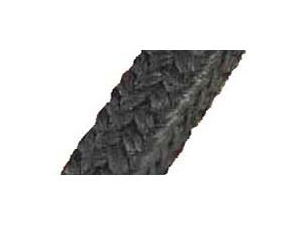

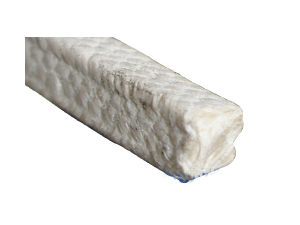

5. **Polyacrylonitrile (PAN) / Acrylic Fibers:** Offer good resistance to solvents, oils, and weak acids, often used in hydrocarbon services.
**Kaxite Synthetic Fiber Packing Product Matrix**
The following table summarizes the characteristics of our core synthetic fiber packing series. Always consult Kaxite engineering for final selection based on your specific operating conditions.
| Product Series |
Primary Fiber Composition |
Impregnation / Treatment |
Temperature Range |
pH Range |
Typical Applications |
| KX-Aramid Pro |
Aramid (Kevlar) |
PTFE & High-Grade Lubricants |
-100°F to 550°F (-73°C to 288°C) |
2 - 12 |
Hot water, steam, abrasive slurries, paper stock |
| KX-Carbon Seal HT |
Carbon Fiber |
Reinforced Graphite & PTFE |
-100°F to 1200°F* (-73°C to 650°C)* |
0 - 14 |
Boiler feed pumps, high-temperature valves, heat transfer fluids |
| KX-PTFE Pure |
100% PTFE Filament |
PTFE Dispersion |
-400°F to 550°F (-240°C to 288°C) |
0 - 14 |
Chemical processing, pharmaceutical, food & beverage, strong oxidizers |
| KX-Graphite Flex |
Fiberglass / Carbon |
Flexible Graphite Foil |
-400°F to 1200°F* (-240°C to 650°C)* |
0 - 14 (excluding strong oxidizers) |
Steam services, expansion joints, high-temperature flanges |
| KX-Chem Blend |
Acrylic / Aramid Blend |
Specialty Chemical Lubricants |
-40°F to 300°F (-40°C to 149°C) |
4 - 10 |
Fuel oil, hydrocarbons, solvents, caustic solutions |
*Dry air/steam service. Lower in liquid media.
**Critical Physical and Performance Data**
When evaluating packing, consider these measurable properties:
* **Density:** Measured in g/cm³. Higher density often indicates better sealing capability and longer life under high pressure.
* **Tensile Strength:** The maximum stress the packing can withstand while being stretched. Crucial for high-pressure applications.
* **Coefficient of Friction:** A lower value means less friction, less heat generation, and reduced power consumption.
* **Thermal Conductivity:** The ability to transfer heat away from the shaft interface. Carbon and graphite-based packings excel here.
* **Compressibility & Recovery:** The packing's ability to deform under load (compress) and return slightly when the load is removed (recover), maintaining seal contact.
**Installation and Maintenance Guidelines**
Proper installation is as important as selecting the right product. Incorrect installation is a leading cause of packing failure.
1. **Clean the Stuffing Box:** Remove all old packing rings and clean the box and shaft thoroughly.
2. **Inspect the Shaft/Sleeve:** Check for scoring, pitting, or excessive wear. A worn shaft will rapidly destroy new packing.
3. **Cut Rings Correctly:** Use a mandrel the exact size of the shaft diameter. Cut each ring individually, ensuring a clean, square butt joint. Never cut multiple rings at once or wrap packing around the shaft.
4. **Stagger Joints:** Install each ring one at a time, using a tamping tool to seat it firmly. Stagger the joints by 90 degrees (or more) around the shaft.
5. **Proper Gland Adjustment:** After installation, tighten the gland nuts finger-tight. Start the equipment and gradually tighten the gland in 1/4-turn increments, allowing time between adjustments, until leakage is reduced to a slight drip (typically 40-60 drops per minute for water). **Overtightening causes rapid wear, overheating, and shaft damage.**
**Frequently Asked Questions (FAQ)**
What is the main difference between synthetic fiber packing and mechanical seals?
Mechanical seals are face seals with two very flat, precision lapped surfaces that rotate against each other, typically offering near-zero leakage. Packing is a radial seal that fits around a shaft and contacts its circumference, requiring a minimal amount of leakage for lubrication. Packing is generally more forgiving of shaft runout and easier to adjust or repair in the field, while mechanical seals often provide longer life and better containment in critical applications.
How do I choose between aramid, carbon, and PTFE packing?
The choice depends on your service conditions. Use **Aramid** for general purpose, abrasive, or high-strength needs (e.g., pulp & paper, slurry pumps). Choose **Carbon** for very high temperatures, high speeds, or where excellent thermal conductivity is needed (e.g., boiler feed pumps). Select **PTFE** for the broadest chemical resistance, ultra-pure applications, or where stick-slip must be avoided (e.g., chemical processing, food industry).
Can synthetic fiber packing be used for high-speed pump applications?
Yes, but selection is critical. For high-speed applications (over 3600 RPM), low-friction, high thermal conductivity packings like Kaxite's KX-Carbon Seal HT or specially formulated high-speed PTFE packings are recommended. Proper gland adjustment and shaft condition are paramount to prevent excessive heat buildup.
What causes synthetic packing to fail prematurely?
Common causes include: incorrect packing selection for the service (chemical, temperature, pressure), improper installation (especially over-tightening), a damaged or scored shaft/sleeve, running the equipment dry without lubrication/leakage, and thermal cycling beyond the packing's rating.
How many rings of packing should I install in a stuffing box?
The standard rule is to install a number of rings equal to the shaft diameter (in inches) plus one, or simply fill the box without overfilling. For a 2-inch shaft, typically 3 rings are used. The exact number can vary based on the packing style and application; always refer to the Kaxite product datasheet or installation guide.
Is it necessary to break-in or run-in new packing?
Absolutely. A controlled break-in period is essential. After initial gland adjustment, run the equipment for 15-30 minutes, then re-adjust the gland slightly. This allows the packing to seat properly, transfer lubricant, and form an effective seal. The full break-in may take several hours of operation with periodic minor adjustments.
Can Kaxite packings be used in FDA or USDA approved applications?
Yes, specifically our KX-PTFE Pure series. It is manufactured from 100% virgin PTFE materials that comply with FDA regulations CFR 21.177.1550 for food contact applications. Documentation is available upon request.
How do I handle and store synthetic fiber packing?
Store packing in its original packaging in a cool, dry place away from direct sunlight, extreme temperatures, and chemicals. Avoid bending or kinking the spool. Handle with clean hands or gloves to prevent contamination, especially for PTFE or food-grade products.
