The Ultimate Guide to High-Performance Copper Gaskets
For engineers and procurement specialists seeking a reliable, conductive, and malleable sealing solution, Copper Gaskets stand as an industry benchmark. At Kaxite, we leverage decades of metallurgical expertise to manufacture copper gaskets that deliver uncompromising performance in the most demanding environments. Unlike generic offerings, Kaxite's gaskets are engineered from the ground up, considering the precise interplay of material purity, temper, and application-specific stresses to ensure a perfect, lasting seal every time.
Why Choose Copper for Critical Sealing Applications?
Copper remains the material of choice for numerous high-stakes applications due to its unique combination of properties. Its excellent thermal and electrical conductivity is paramount for heat exchangers, electrical busbars, and transformer flanges, where the gasket itself often forms part of the conductive path. Furthermore, copper's natural malleability allows it to conform exceptionally well to uneven or slightly damaged flange surfaces, creating a tight, metal-to-metal seal that resists creep relaxation under temperature cycling. It is also non-magnetic, resistant to sparking, and can withstand extreme temperatures from cryogenic levels up to approximately 900°F (482°C) in oxidizing atmospheres, and much higher in reducing or vacuum environments.
Kaxite Copper Gasket Product Specifications & Technical Data
Our commitment to precision means every Kaxite copper gasket is produced to exacting standards. Below are the core specifications that define our product line.
Standard Material Specifications:
- Primary Material: Oxygen-Free Copper (C10100/C10200), Electrolytic Tough Pitch Copper (C11000)
- Alternative Grades: Available upon request: Beryllium Copper, Chrome Zirconium Copper for enhanced strength.
- Standard Tempers: Annealed (Soft), Quarter-Hard, Half-Hard, Full-Hard. (Annealed is standard for optimal conformability).
- Density: 8.96 g/cm³ (0.324 lb/in³)
- Melting Point: 1085°C (1984°F)
Standard Physical & Performance Parameters:
| Parameter | Value / Range | Notes & Standards |
|---|---|---|
| Thermal Conductivity | 391 W/m·K | At 20°C, superior for heat transfer applications. |
| Electrical Conductivity | 100% IACS (min) | International Annealed Copper Standard. |
| Temperature Range (Continuous) | -250°C to +400°C | In oxidizing atmospheres. Wider range possible in inert/vacuum. |
| Maximum Pressure | Varies by design | Dependent on flange design, hardness, and seal configuration. |
| Surface Finish | 32 µin (0.8 µm) Ra or better | Standard machined finish for optimal sealing. |
| Standard Thickness | 0.5mm (0.020") to 3.0mm (0.125") | Custom thicknesses available. |
| Standard Hardness (Annealed) | <td>Rockwell F 40-60</td>Provides ideal balance of sealing and crush resistance. |
Common Types & Profiles of Kaxite Copper Gaskets
We manufacture a comprehensive range of profiles to suit various flange designs and sealing philosophies.

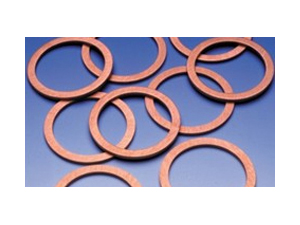

- Flat Ring Gaskets (RF/FF): The most common type, used for raised face or flat face flanges. Kaxite provides cleanly stamped or precision-machined rings with controlled edges.
- Spiral-Wound Gaskets with Copper Filler: For higher pressure/temperature applications, a spiral-wound gasket with a copper-wound core and outer ring offers exceptional resilience.
- Corrugated Metal Gaskets: Feature concentric corrugations that increase elasticity and improve sealing with lower bolt load.
- Jacketed Gaskets: A soft filler material (like graphite) is enclosed in a copper jacket, combining copper's strength with a soft seal.
- Custom Shapes (Oval, Square, Rectangular): Precision-machined to customer-provided drawings for specialized equipment.
Copper Gaskets: Frequently Asked Questions (FAQ)
Q: When should I choose a copper gasket over a stainless steel or soft composite gasket?
A: Choose copper when your application involves high thermal or electrical conductivity requirements, exposure to cryogenic temperatures, or sealing against flammable/oxygen-enriched gases where spark resistance is critical. Copper is also superior for conforming to imperfect flange surfaces. For highly corrosive chemical services or where higher strength is needed without conductivity, stainless or nickel alloys may be preferable. Soft composites are used for lower pressure/temperature and non-conductive applications.
Q: What is the difference between annealed (soft) and hard temper copper in gaskets?
A: Annealed copper is very soft and ductile. It conforms easily to flange surfaces, making it excellent for creating a initial seal, especially on flanges with minor imperfections. However, it has a higher tendency for "creep" relaxation under sustained pressure and temperature. Harder tempers (quarter-hard, half-hard) offer greater resistance to blowout and creep, providing more stable sealing in dynamic systems but require higher bolt loads to achieve initial sealing conformity.
Q: How do I determine the correct thickness for my copper gasket?
A: Thickness selection depends on flange type, surface condition, bolt load, and internal pressure. A common starting point is 1.5mm (1/16") for standard raised face flanges. Thicker gaskets (e.g., 3mm) can accommodate more flange distortion or misalignment but may require re-torquing. For critical applications, consulting Kaxite's engineering team is recommended. We can advise based on your specific flange design, ASME/EN standards, and operating conditions.
Q: Can Kaxite copper gaskets be reused?
A: Generally, solid metal gaskets like copper are not designed for reuse. During installation, the copper deforms plastically to fill the micro-irregularities of the flange faces. Once disassembled, this deformed profile is specific to that installed condition and the gasket's sealing capability is significantly reduced. Reuse can lead to leaks. Kaxite always recommends using a new gasket for each assembly to ensure system integrity and safety.
Q: What surface preparation is required for the flange faces when using a copper gasket?
A: For a reliable seal, flange faces should be clean, dry, and free of old gasket material, oil, and burrs. A surface finish between 3.2 µm (125 µin) and 6.3 µm (250 µin) Ra is typically ideal. Smoother finishes can sometimes hinder sealing. The flanges must be parallel and aligned properly. Lightly applying an approved anti-seize or fitting paste to the gasket can prevent galling and ease future disassembly, but this is not always necessary and depends on the service media.
Q: Are Kaxite copper gaskets suitable for vacuum or ultra-high vacuum (UHV) applications?

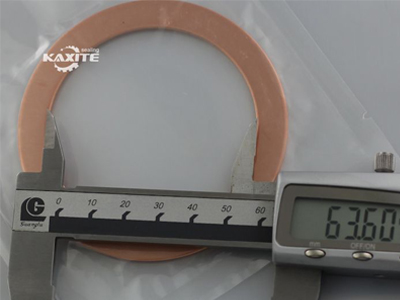

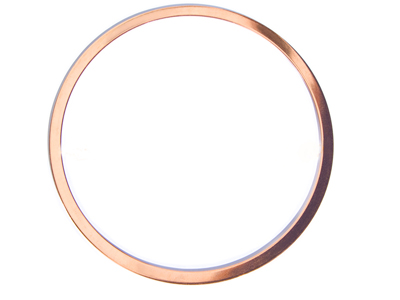

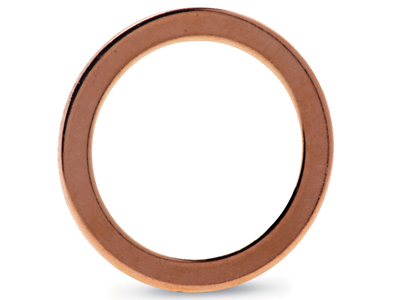

A: Yes, oxygen-free copper (OFHC) gaskets from Kaxite are an excellent choice for vacuum systems, particularly in ConFlat (CF) and other metal-seal flange designs. Copper's malleability allows it to form a very tight, helium-leak-tight seal when compressed between knife-edges. For UHV, our OFHC copper is specially processed and handled to minimize outgassing, a critical factor for achieving and maintaining low pressures. We supply gaskets certified for vacuum service with traceability.
Applications of Kaxite Copper Gaskets Across Industries
The versatility of our copper sealing solutions makes them indispensable in several high-tech and heavy-duty sectors.
- Power Generation & Electrical: Transformer flanges, busbar connections, generator housings, and switchgear where electrical continuity and heat dissipation are vital.
- Aerospace & Defense: Cryogenic fuel lines, missile systems, radar waveguides, and engine components requiring reliable seals under thermal cycling and vibration.
- Vacuum & Semiconductor: Chamber doors, CF flanges, pump connections, and plasma etch tools where high integrity, low outgassing seals are mandatory.

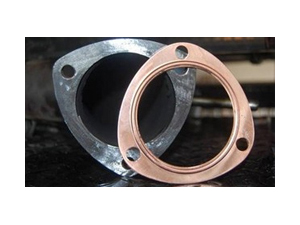

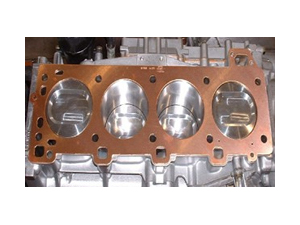

- Automotive & Racing: High-performance turbocharger systems, oil coolers, and engine test stands exposed to high temperatures and pressures.
- Industrial Manufacturing: Heat exchangers, compressor housings, hydraulic systems, and furnaces operating at elevated temperatures.
Ordering and Customization with Kaxite
At Kaxite, we understand that standard sizes don't always fit unique challenges. Our engineering team works directly with clients to develop custom copper gasket solutions. Whether you need a specific alloy, an unusual profile, a proprietary coating, or full traceability with material certifications, we have the capability to deliver. Our process begins with a detailed review of your application parameters, leading to a product that performs reliably from installation through its entire service life.
