PTFE Bearing Slide

Discover the innovative PTFE Bearing Slide from Kaxite Sealing, engineered for superior smoothness and durability in demanding applications. Perfect for industrial and professional users, this slide reduces friction and wear, ensuring reliable performance in harsh environments. Experience effortless operation and enhanced longevity, solving common maintenance issues with its unique PTFE material and precision design. Choose Kaxite Sealing for unmatched quality and efficiency.

Send Inquiry

Product Description

[ Features ]

PTFE bearing slide is made from high strength PTFE suspension resin by methods of moulding, sintering and finalizing the design to various sizes. Different fillings can be used to achieve special demands. It can also be adhered to rubber and metal with one side etched.
PTFE has very low coefficient of friction, it is anticorrosive and not aging, can be widely used in temperature from -180

to +260

[ Main properties ]

Properties	Unit	Result
Apparent density	g/cm³	2.10-2.25
Tensile strength (min)	MPa	30
Ultimate elongation (min)	%	250

[ Specifications ]

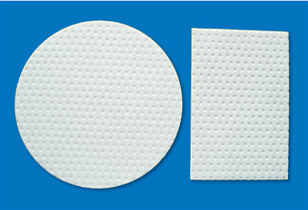

Round Type
Diameter(mm)	Thickness (mm)	Diameter(mm)	Thickness (mm)	Diameter(mm)	Thickness (mm)
Φ140	6-8	Φ240	6-8	Φ415	6-8
Φ150	6-8	Φ260	6-8	Φ636	6-8
Φ160	6-8	Φ300	6-8	Φ740	6-8
Φ180	6-8	Φ320	6-8	Φ852	6-8
Φ210	6-8	Φ340	6-8

Square Type
Standard (mm)	Thickness (mm)
300X300	5-10
400X400	5-10
500X500	5-10
600X600	5-10
800X800	5-10
900X900	5-10
1000X1000	5-10

[ Applications ]

Bridge bearing slide, building slide, vehicle slide.
