PTFE Rod

Discover Kaxite Sealing's PTFE Rod, a durable solution for high-performance sealing and insulation. Made from pure PTFE, it offers chemical resistance and smooth operation. Ideal for engineers and industries seeking reliability in harsh environments. Experience hassle-free maintenance and enhanced efficiency. Stand out with precision engineering and consistent quality from Kaxite Sealing, your trusted partner for premium sealing solutions.

Send Inquiry

Rating: 5.0

(Rating Count: 1)

Product Description

[ Features ]

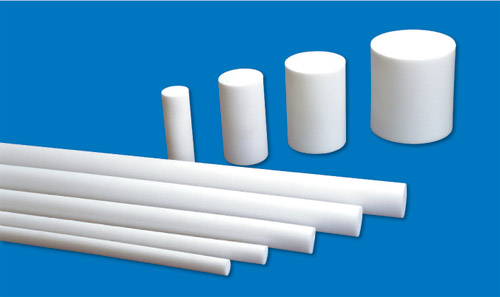

There are two kinds of PTFE rods to offer. One is manufactured by Paste extruding method in the diameter from 4 to 9mm and the other Is made by ram extruding method is the diameter from 10to 50mm; rods Over the diameter 50mm are manufactured by moulding. PTFE is the most chemical-resistant of all known plastics. It does not age.
PTFE has a wide range of practicable temperature from 180%

- +260

and a wax-like surface to which anything hardly sticks.
PTFE has the lowest coefficient of friction of all known solid materials. It has the best electrical properties of all plastics.

[ Specifications ]

TYPES	Diameter(mm)		Length(mm)
	Nominal	Tolerance	Nominal	Tolerance
SFFBN	4,5,6	+0.48 0	100	+5.0
	7,8,9	+0.58 0
SFxBN	10,13,15 16,18	+1.10 0	1000	+3.60
	20,25,30	+1.30 0
	35,40,45 50	+1.60 0
	55,60,65,70,75 80,85,90,100	+2.00 0	1000	+2.50
	110,120,130 140,150	+2.50 0
	180,200,250 270,300	+3.0 0	300	+2.0

[ Main properties ]

Properties	Unit	Result
Apparent density	g/cm³	2.10-2.30
Tensile strength (min)	MPa	14.0
Ultimate elongation (min)	%	140

Note: When the diameter of rod is larger than 16mm.only test Apparent density

[ Applications ]

Electrical Insulation,seal,Antisticking materials.
